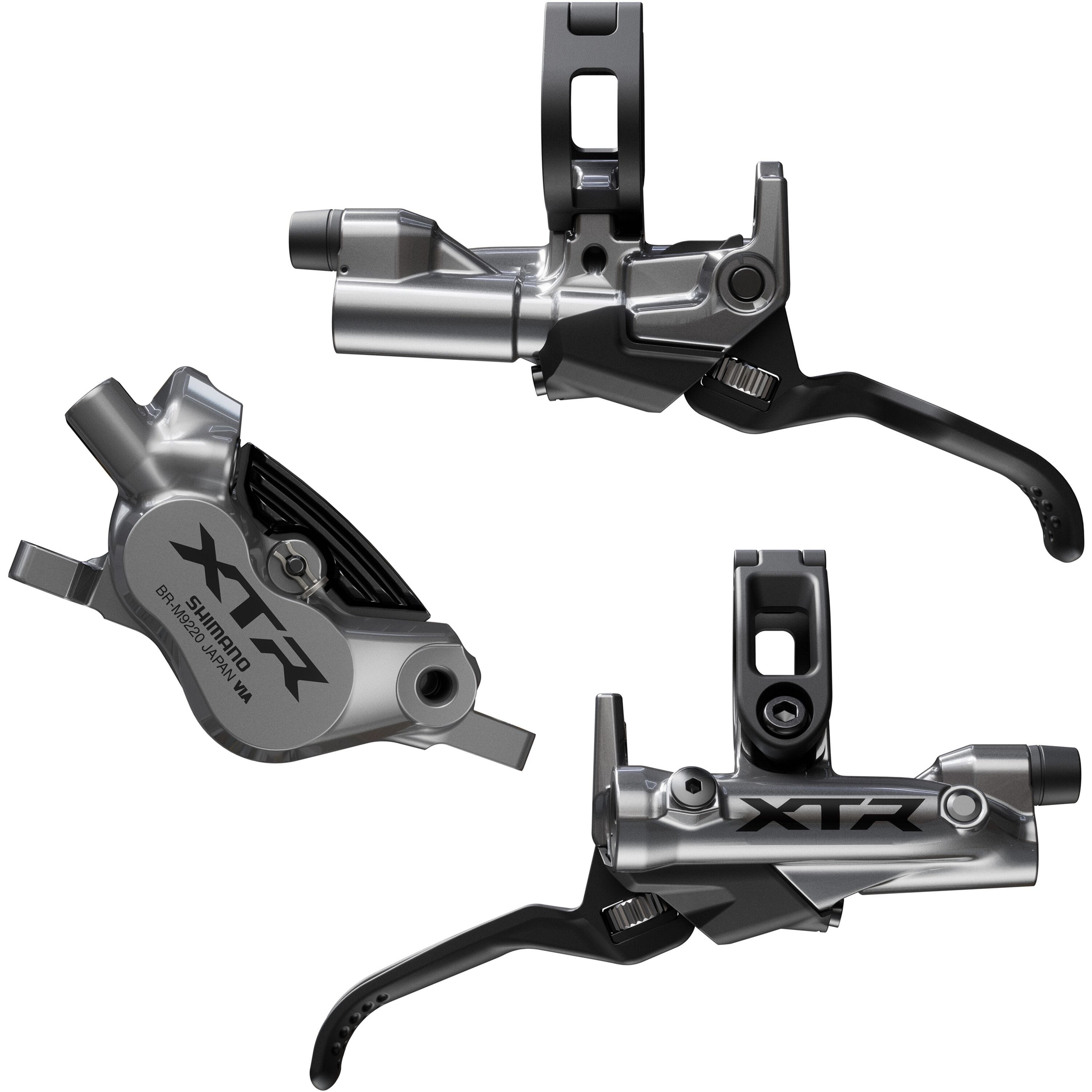

  5. Shimano Br-M9220/Bl-M9220 Xtr 4 Pot Brake Levers And Callipers
Shimano
Product Information
Size:
FRONT&REAR
Colour:
Black
How to Buy

In-Store

Ask in-store
to confirm availability

Phone

Phone us on 01506 873123
to confirm availability

Online

Not currently available
for online ordering
Delivery Information

This product isn’t currently available for online ordering.

Please phone us on 01506 873123 to confirm availability.

Select & Buy

Shimano Br-M9220/Bl-M9220 Xtr 4 Pot Brake Levers And Callipers FRONT&REAR Black
Shimano Br-M9220/Bl-M9220 Xtr 4 Pot Brake Levers And Callipers FRONT&REAR Black
GTIN: 4550170997601
MPN: IBRM9220KIT

Out of stock

£499.99

Description

  • XTR 4 pot Enduro/Trail brakes are performance optimized Servo-Wave systems with full adjustability on the fly
  • Levers and callipers comes without adapters or rotors giving you the freedom to customise and suit your bike
  • Recommended for use with Ice Tech Center Lock rotors for optimum braking performance in a choice of 160, 180 and 203 mm
  • short stroke Servo-Wave mechanism with SIL-TEC roller for a quick, smooth pad engagement and more power for aggressive riding
  • Free-stroke adjustment
  • Second braced bar contact point for increased master cylinder and lever rigidity
  • Dual diameter 4 pistons design optimized for high power and control
  • Super lightweight forged one piece design that increases rigidity and reduces weight
  • Anti-rattle pad structure, wider back plate of pad with narrower, ovalized hole for pad pin
  • Forged alloy short 14 mm wide up-swept brake lever with textured finish for optimum strength, grip and ergonomics
  • Evolved ergonomic lever design for trail/enduro with a closer pivot and natural finger motion provides efficient and powerful braking
  • Only for use with Low Viscosity Oil. For consistent viscosity over a wide temperature range ensuring stable piston movement within the brake system and always provides the necessary braking force with a constant lever stroke
  • Shim-less post style mounting system can be used with adapters
  • Hinged clamp and reach adjustment for quick installation and the perfect custom fit
  • I-spec-EV compatible
  • Kit also contains pads, spare olives and insert should you wish to adjust the length of the cuttable hoses

Specification

Miscellaneous
Model Year
Model Year
2025
